Embedded Analytics with LoginID Dashboard

The LoginID Dashboard provides real-time and historical visibility into user activity, passkey performance, and system-level interactions. It helps you monitor and analyze passkey authentication and platform events across your application.

Total Users Enrolled​

This counts the total number of unique end users who have successfully registered at least one passkey with your application.

  • Each user is counted once, regardless of how many passkeys they’ve registered.
  • Useful for tracking overall adoption of passkey-based login.

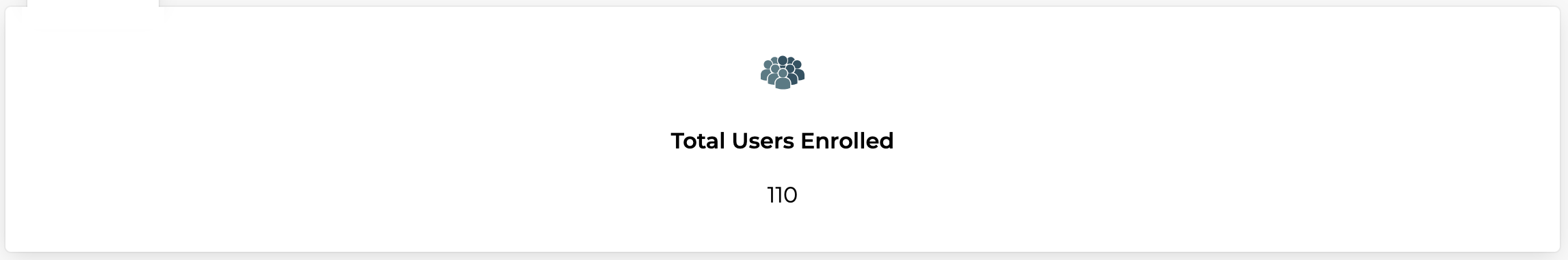

Total Users Enrolled section in the LoginID dashboard

Actions Overview​

This section provides a high-level summary of user actions such as passkey authentications, passkey registrations, and transactions. Each event is classified as either completed or failed.

  • Passkey Authentications: Number of successful or failed login attempts using passkeys.
  • Passkey Registrations: Number of successful or failed attempts when creating a passkey.
  • Transactions: Total completed transaction confirmation flows and their success/failure status.
info

The Transactions metric is directly tied to LoginID's Secure Checkout flow.
Each time a user confirms a transaction — such as a payment — using a passkey, this counter will increment.

You can filter this section by time period using the dropdown.

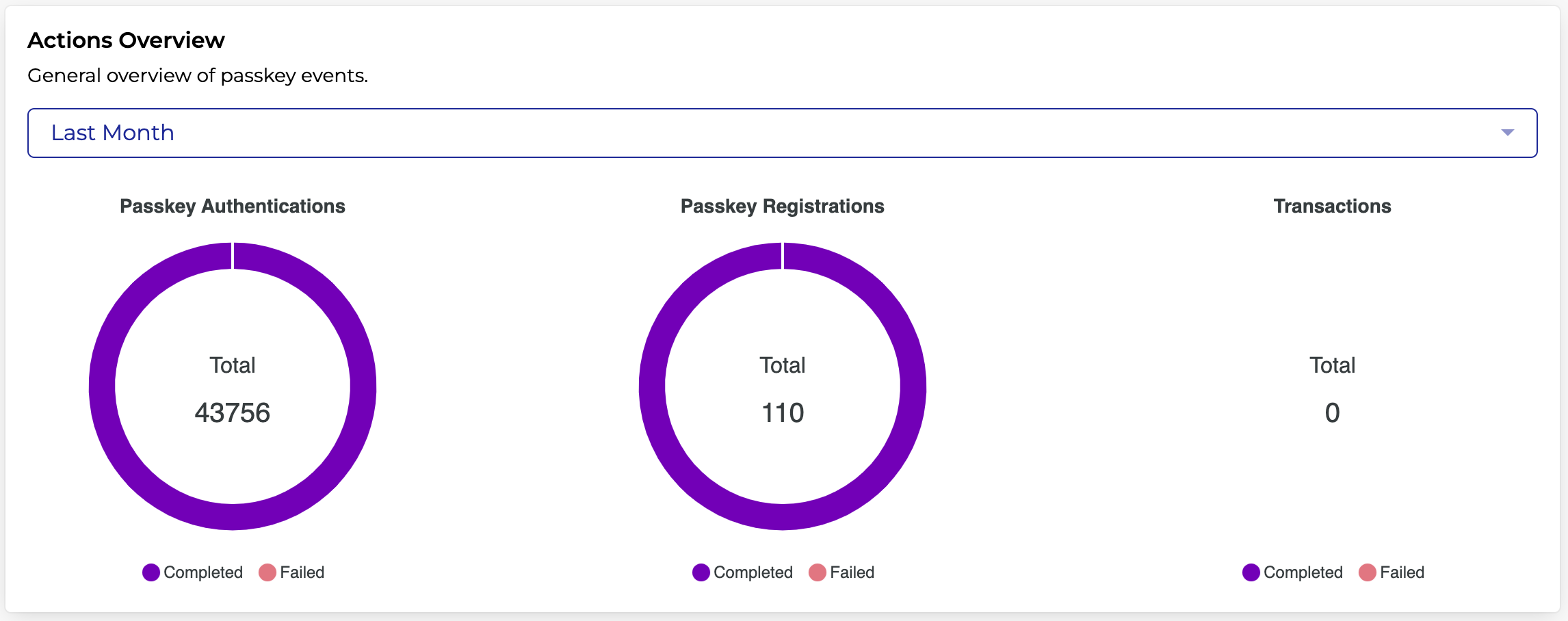

Actions Overview section in the LoginID dashboard

Device Overview​

Displays aggregate information about the types of devices users are authenticating from, broken down by:

  • OS Name
  • Client Name — Typically the name of the browser (e.g., Chrome, Safari) or the mobile platform (e.g., Android, iOS).
  • Client Type — Typically categorized as browser or other depending on the source of the request.

This can help you identify trends in platforms.

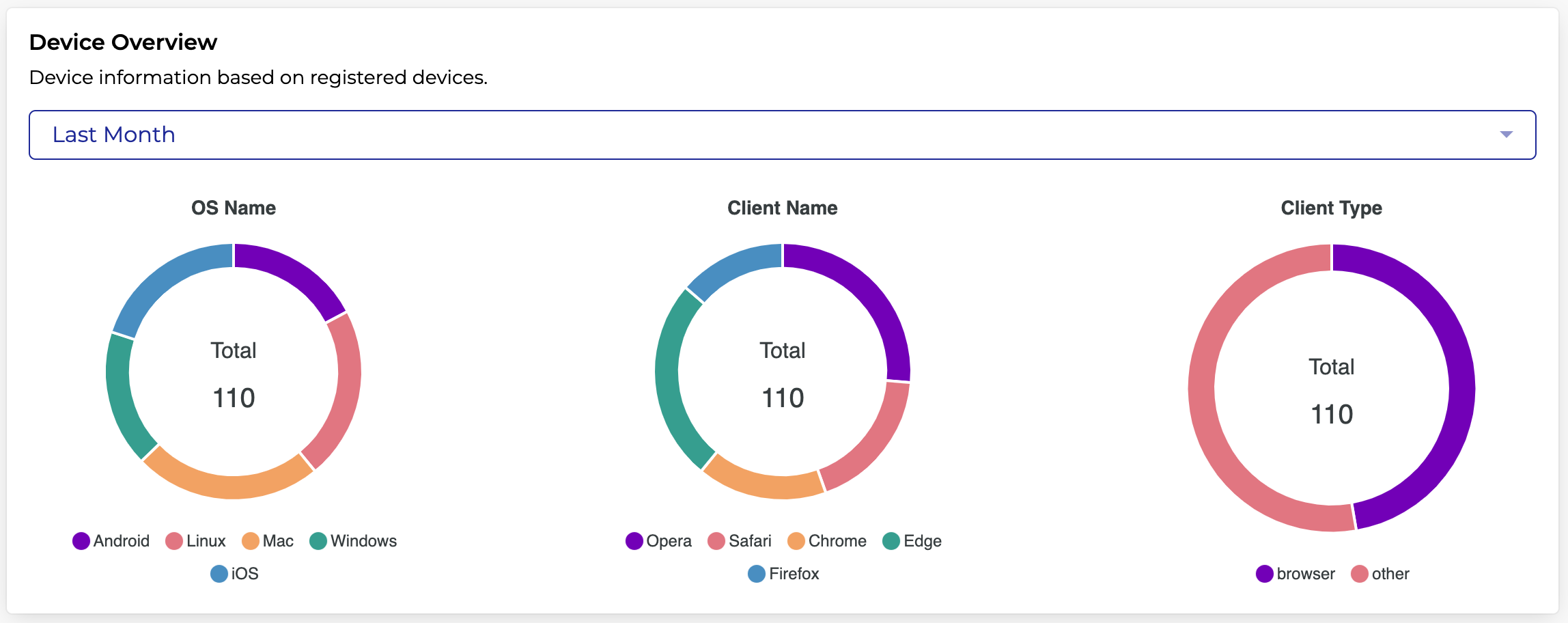

Device Overview section in the LoginID dashboard

Top Authenticators​

Highlights top passkey authenticators to help monitor usage and adoption across your application.

You can switch between Registration and Authentication views using the dropdown menu.

Each row lists:

  • Provider Name — The authenticator or password manager (e.g., Google Password Manager, iCloud Keychain).
  • Count — Total passkey registrations or authentications completed using that provider.

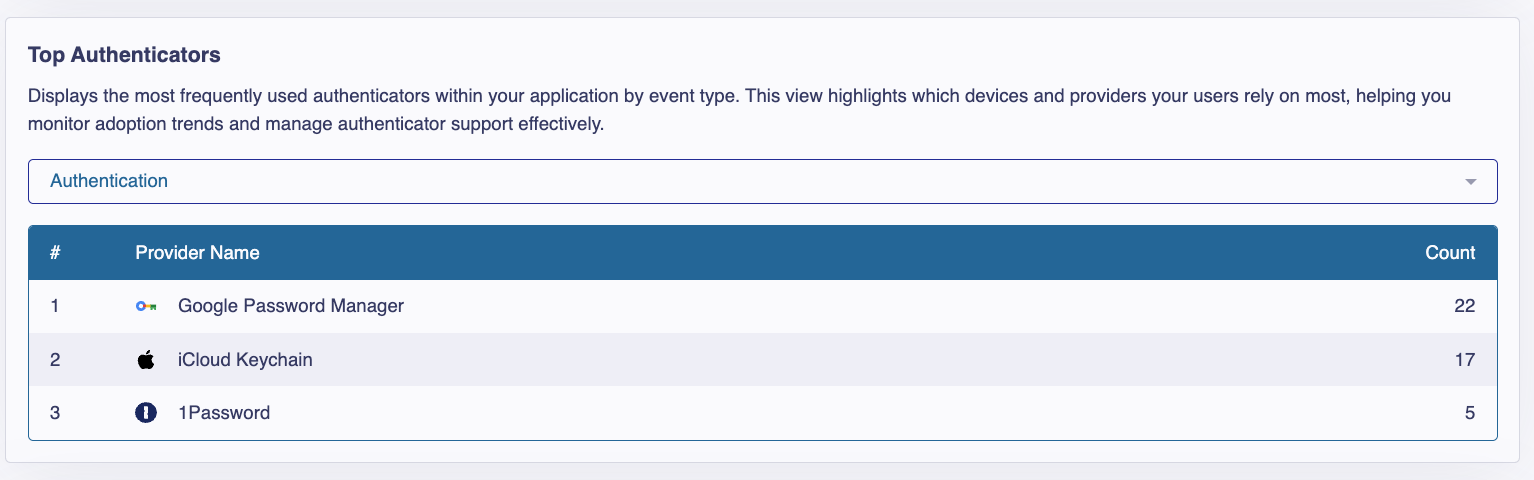

Top Authenticators section in the LoginID dashboard

Real-Time User Authentication (Live)​

Visualizes real-time data of users who are actively authenticating. This chart is helpful for monitoring spikes or irregular activity patterns.

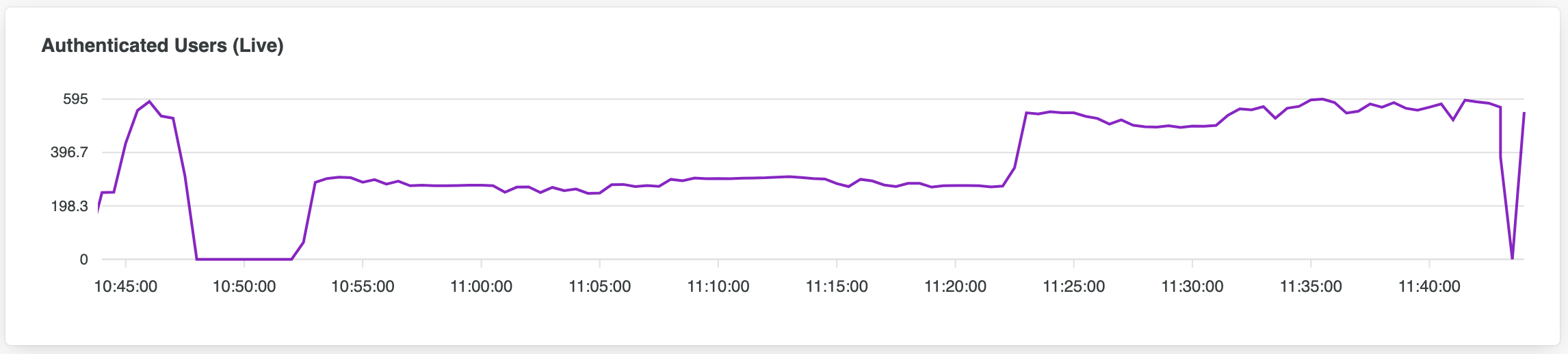

Authenticated Users (Live) section in the LoginID dashboard

Aggregated Authentication Activity​

This graph aggregates passkey authentication data over a selected date range. Use it to understand historical login trends and behavior changes before and after releases or changes.

  • Granular Time-Series Aggregation: Authentication data is grouped over time intervals to provide a clear picture of usage patterns. The time granularity adjusts dynamically based on the selected date range.
  • Export Options: Charts can be downloaded as PNG, SVG or CSV files for use in reports or presentations. Just click the hamburger icon tab in the chart toolbar to select your preferred format.
  • Fixed Polling Interval: The graph auto-refreshes at a fixed rate based on the selected date range:
    • Under 7 days: Refreshes every 300 seconds (5 minutes)
    • 7 to 30 days: Refreshes every 3600 seconds (1 hour)
    • Over 30 days: Refreshes every 86400 seconds (1 day)

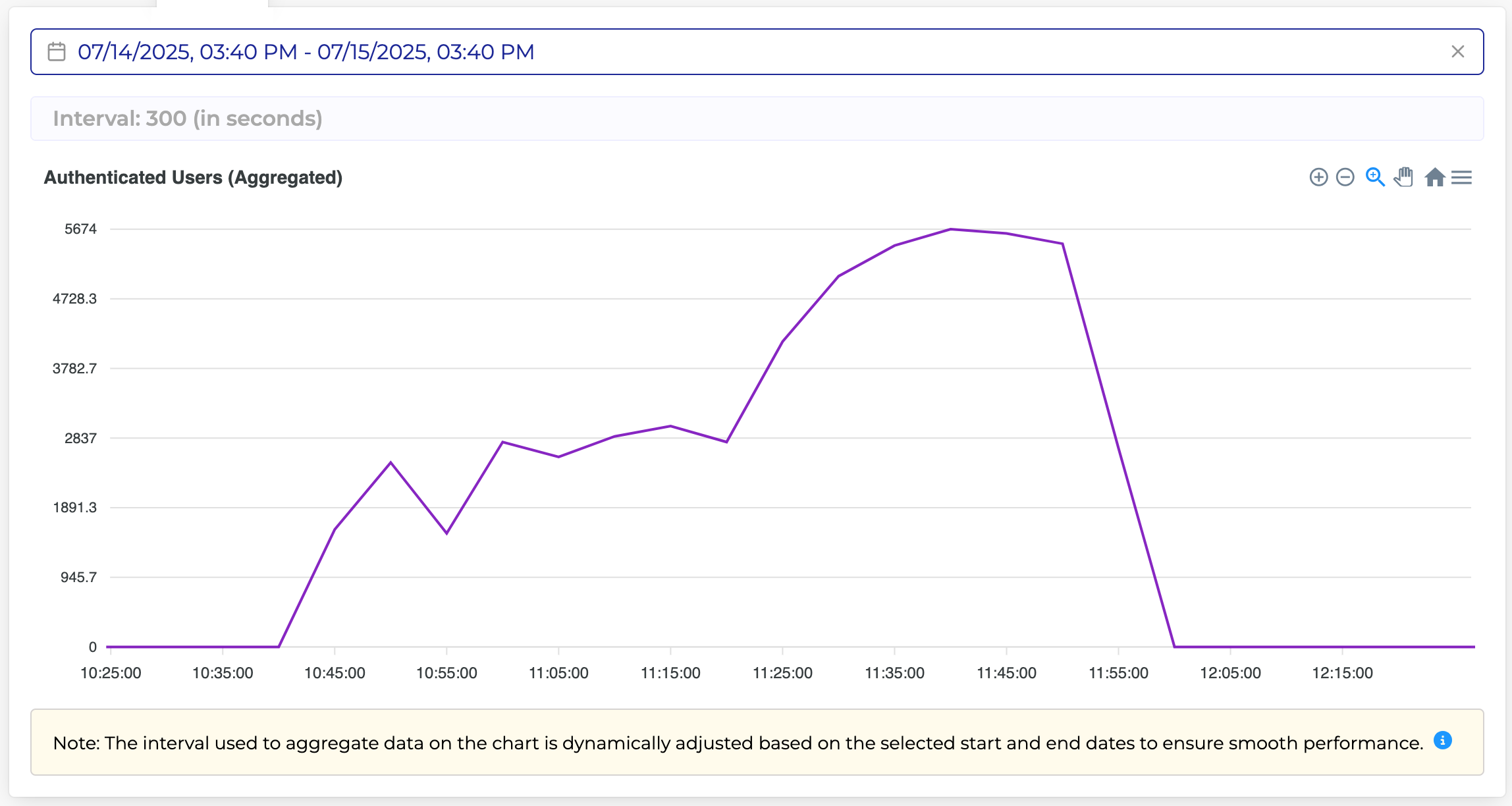

Authenticated Users (Aggregated) section in the LoginID dashboard

Passkey Response Time​

The Latency graph helps evaluate LoginID's system performance. It displays response times for passkey authentication events:

  • Passkey Registration Initiated: Time taken to generate and deliver the passkey creation prompt to the user’s device.
  • Passkey Registrations: Total time to complete the passkey creation process, from prompt delivery to final confirmation.
  • Passkey Authentication: Total time to complete the passkey login process, from prompt delivery to successful authentication.

Each stage is measured using:

  • Minimum response time
  • Median response time
  • 95th percentile (slowest 5%) response time

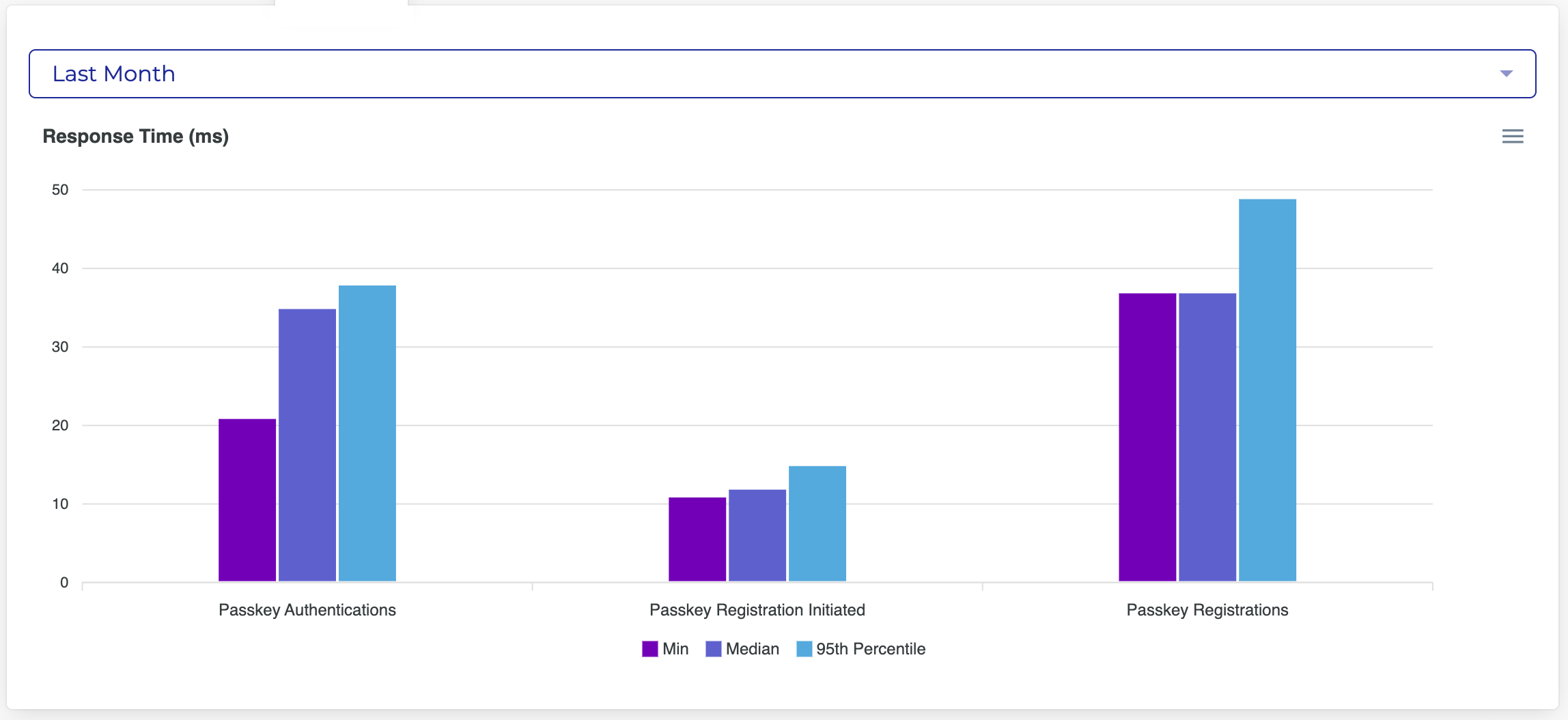

Passkey Response Time section in the LoginID dashboard
