Sign In with Cross Authentication and Create Passkey

Cross Authentication happens when passkey authentication is not possible. This occurs when devices use different sync fabrics or cannot communicate directly with a passkey manager. To resolve this, LoginID uses OTP authentication to complete the sign-in process.

You can obtain an OTP for cross-authentication in the following ways:

• Sign in with a passkey on your original device and request an OTP using requestOtp method.
• Trigger an email with an OTP by using the requestAndSendOtp method.

Prerequisites

• Create an application to obtain a base URL

Setup SDK

Javascript

npm i @loginid/websdk3

Import and initialize an instance:

import { LoginIDWebSDK } from "@loginid/websdk3";

const lid = new LoginIDWebSDK({
  baseUrl: process.env.LOGINID_BASE_URL,
});

Kotlin

Initialize a singleton configuration for the LoginID service in the application's onCreate method.

class MyApp : Application() {
    override fun onCreate() {
        super.onCreate()
        // Initialize the singleton instance
        val config = LoginIDServiceConfig("<BASE_URL>")
        LoginID.configure(config).client()
    }
}

Swift

Configure the singleton instance of LIDClient with a base URL during the app's launch in the AppDelegate.

import LoginID
import UIKit

@main
class AppDelegate: UIResponder, UIApplicationDelegate {
    func application(_: UIApplication, didFinishLaunchingWithOptions _: [UIApplication.LaunchOptionsKey: Any]?) -> Bool
    {
        // Initialize the singleton instance
        LIDClient.shared.configure(baseURL: "<BASE_URL>")
        return true
    }
}

Cross Authentication Method

Request OTP From Original Device

In this section, we explore how to implement OTP authentication via email. This method allows users to securely log in through a temporary OTP sent to their registered email. Below, we outline the process and provide sample code for integration.

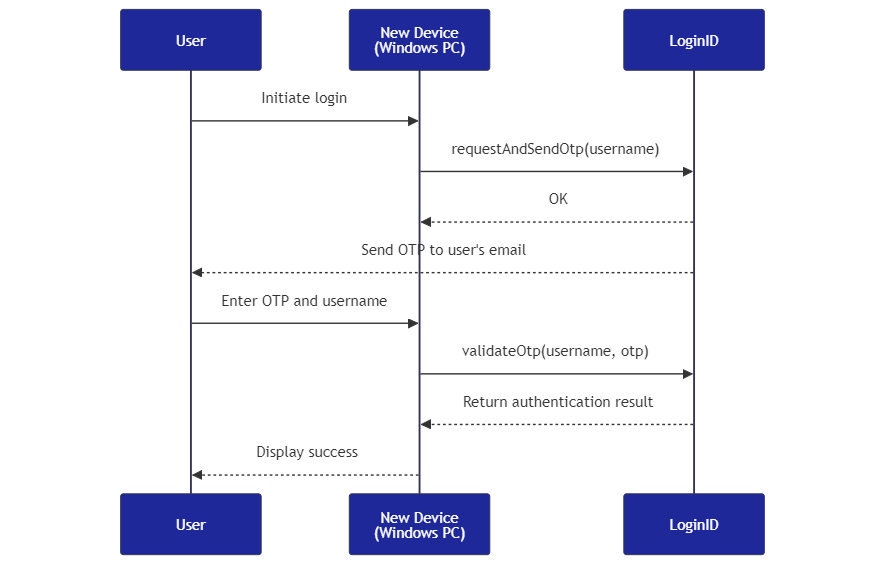

Diagram

Imagine the following scenario:

• The user’s passkey is stored in their iPhone's iCloud Keychain, but they are attempting to sign in on a Windows PC
• The user request an OTP using the requestAndSendOtp method on their Windows PC
• The OTP is sent to the user’s registered email and displayed there.
• The user enters the OTP on the Windows PC to sign in using validateOtp.
• After successful authentication, the user is prompted to add a new passkey to the Windows PC using createPasskey.

Request and Send OTP

We send an OTP to the registered username using the requestAndSendOtp method. LoginID will send the OTP via email to the user.

Javascript

import { LoginIDWebSDK } from "@loginid/websdk3";

const lid = new LoginIDWebSDK({
  baseUrl: process.env.REACT_APP_LOGINID_BASE_URL,
});

const SendOTP: React.FC = () => {
  const [username, setUsername] = useState<string>("");
  const [error, setError] = useState<string>("");
  const [success, setSuccess] = useState<string>("");

  const handleSendOTP = async (e: React.FormEvent) => {
    e.preventDefault();

    try {
      // Send an OTP under the user's email
      await lid.requestAndSendOtp(username, "email");

      setSuccess("OTP sent successfully!");
    } catch (e) {
      if (e instanceof Error) {
        setError(e.message);
      }
    }
  };
};

Kotlin

import loginid.LoginID
import services.modals.MessageType

class MainActivity : AppCompatActivity() {
    private lateinit var usernameEditText: EditText
    private lateinit var errorTextView: TextView
    private lateinit var generateCodeButton: Button

    private fun handleSendOTP() {
        val username = usernameEditText.text.toString()
        errorTextView.text = ""

        GlobalScope.launch(Dispatchers.Main) {
            try {
                // Send an OTP code under the user's email
                LoginID.client().sendCode(username, MessageType.EMAIL)

                successTextView.text = "OTP sent successfully!"
            } catch (e: Exception) {
                when (e) {
                    is LoginIDError -> {
                        errorTextView.text = e.message ?: "A LoginID error occurred"
                    }
                    else -> {
                        errorTextView.text = e.message ?: "An error occurred"
                    }
                }
            }
        }
    }
}

Swift

Coming soon

Email OTP

In this section, we’ll walk through how to request an OTP on the original device. Before generating the OTP, the user must authenticate using a passkey. Once authenticated, the OTP can be displayed to the user and used for authentication on another device.

Below are the steps and sample code to implement this process. You can integrate this feature within the user’s security or profile settings.

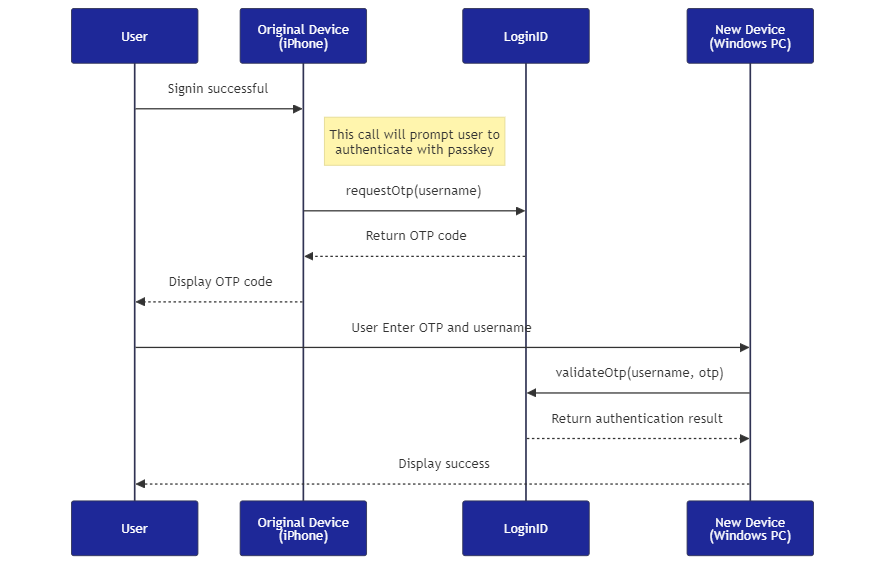

Diagram

Imagine the following scenario:

• The user’s passkey is stored in their iPhone's iCloud Keychain, but they are attempting to sign in on a Windows PC
• The user authenticates with their passkey on the iPhone to request an OTP using the requestOtp method.
• The user enters the OTP on the Windows PC to sign in using validateOtp.
• After successful authentication, the user is prompted to add a new passkey to the Windows PC using createPasskey.

Request OTP On Original Device

Request a temporary authentication OTP on the original device (e.g., iPhone). The user must authenticate with a passkey before the OTP is received.

Javascript

import { LoginIDWebSDK } from "@loginid/websdk3";

const lid = new LoginIDWebSDK({
  baseUrl: process.env.REACT_APP_LOGINID_BASE_URL,
});

const RequestOTP: React.FC = () => {
  const [username, setUsername] = useState<string>("");
  const [error, setError] = useState<string>("");
  const [otp, setOtp] = useState<string>("");

  const handleRequestOTP = async (e: React.FormEvent) => {
    e.preventDefault();

    try {
      // Authenticate with passkey and display OTP on device that has passkey
      const result = await lid.requestOtp(username);

      setOtp(result.code);
    } catch (e) {
      if (e instanceof Error) {
        setError(e.message);
      }
    }
  };
};

Kotlin

import loginid.LoginID
import services.modals.MessageType

class MainActivity : AppCompatActivity() {
    private lateinit var usernameEditText: EditText
    private lateinit var errorTextView: TextView
    private lateinit var codeTextView: TextView
    private lateinit var generateCodeButton: Button

    private fun handleGenerateCode() {
        val username = usernameEditText.text.toString()
        errorTextView.text = ""

        GlobalScope.launch(Dispatchers.Main) {
            try {
                // Authenticate with passkey and display code on device that has passkey
                val result = LoginID.client().generateCodeWithPasskey(this@MainActivity, username)

                codeTextView.setText(result.code)
            } catch (e: Exception) {
                when (e) {
                    is LoginIDError -> {
                        errorTextView.text = e.message ?: "A LoginID error occurred"
                    }
                    else -> {
                        errorTextView.text = e.message ?: "An error occurred"
                    }
                }
            }
        }
    }
}

Swift

Coming soon

Validate the OTP

The user can now enter the OTP on the new device (e.g., Windows PC) to authenticate and sign in. You may prompt them to create a passkey.

Javascript

import React, { useState } from "react";
import { useAuth } from "../../contexts/AuthContext";

import { LoginIDWebSDK } from "@loginid/websdk3";

const lid = new LoginIDWebSDK({
  baseUrl: process.env.REACT_APP_LOGINID_BASE_URL,
});

const LoginWithOTP: React.FC = () => {
  const [username, setUsername] = useState<string>("");
  const [otp, setOtp] = useState<string>("");
  const [error, setError] = useState<string>("");
  const { setAuthUser } = useAuth();

  const handleOTPLogin = async (e: React.FormEvent) => {
    e.preventDefault();

    try {
      // Authenticate with the OTP
      const { token } = await lid.validateOtp(username, otp);

      // Return LoginID token to your backend for verification

      setAuthUser(user);
    } catch (e) {
      if (e instanceof Error) {
        setError(e.message);
      }
    }
  };
};

Kotlin

import loginid.LoginID

class MainActivity : AppCompatActivity() {
    private lateinit var usernameEditText: EditText
    private lateinit var codeEditText: EditText
    private lateinit var errorTextView: TextView
    private lateinit var authenticateButton: Button

    private fun handleAuthenticate() {
        val username = usernameEditText.text.toString()
        val otp = codeEditText.text.toString()
        errorTextView.text = ""

        GlobalScope.launch(Dispatchers.Main) {
            try {
                // User authenticates with passkey
                val result = LoginID.client().authenticateWithCode(username, otp)

                // Return LoginID token to your backend for verification

                AuthContext.setAuthUser(user)
            } catch (e: Exception) {
                when (e) {
                    is LoginIDError -> {
                        errorTextView.text = e.message ?: "A LoginID error occurred"
                    }
                    else -> {
                        errorTextView.text = e.message ?: "An error occurred"
                    }
                }
            }
        }
    }
}

Swift

Coming soon

Once you have received the result LoginID token, you can send it to your backend, and verify it. For detailed technical instructions, refer to this section on verifying LoginID tokens.

(Optional) Add a Passkey on a New Device

After the user successfully authenticates with an OTP, the response returns a LoginID token, which can be used to add a new passkey to the current new device.

Javascript

import React, { useState } from "react";
import * as backend from "../../services/main";
import { useAuth } from "../../contexts/AuthContext";

import { LoginIDWebSDK } from "@loginid/websdk3";

const lid = new LoginIDWebSDK({
  baseUrl: process.env.REACT_APP_LOGINID_BASE_URL,
});

const AddPasskey: React.FC = () => {
  const [username, setUsername] = useState<string>("");
  const [error, setError] = useState<string>("");
  const { user } = useAuth();

  const handleAddPasskey = async (e: React.FormEvent) => {
    e.preventDefault();

    try {
      // Local user access token has permission to add passkey to existing LoginID user
      await lid.createPasskey(user.username);
    } catch (e) {
      if (e instanceof Error) {
        setError(e.message);
      }
    }
  };
};

Kotlin

import loginid.LoginID

class MainActivity : AppCompatActivity() {
    private lateinit var errorTextView: TextView
    private lateinit var addPasskeyButton: Button

    private fun handleAddPasskey() {
        val username = AuthContext.getUser().username
        errorTextView.text = ""

        GlobalScope.launch(Dispatchers.Main) {
            try {
                // Local user access token has permission to add passkey to existing LoginID user
                val addPasskeyResult = LoginID.client().addPasskey(
                    this@MainActivity,
                    username,
                )
            } catch (e: Exception) {
                when (e) {
                    is LoginIDError -> {
                        errorTextView.text = e.message ?: "A LoginID error occurred"
                    }
                    else -> {
                        errorTextView.text = e.message ?: "An error occurred"
                    }
                }
                Log.e("Error", "Error during passkey addition", e)
            }
        }
    }
}

Swift

Coming soon
